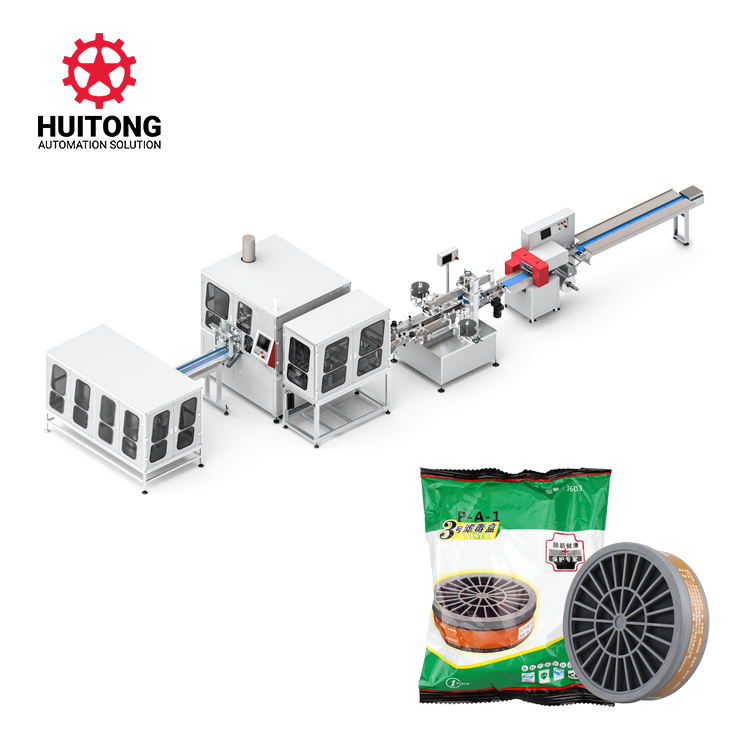

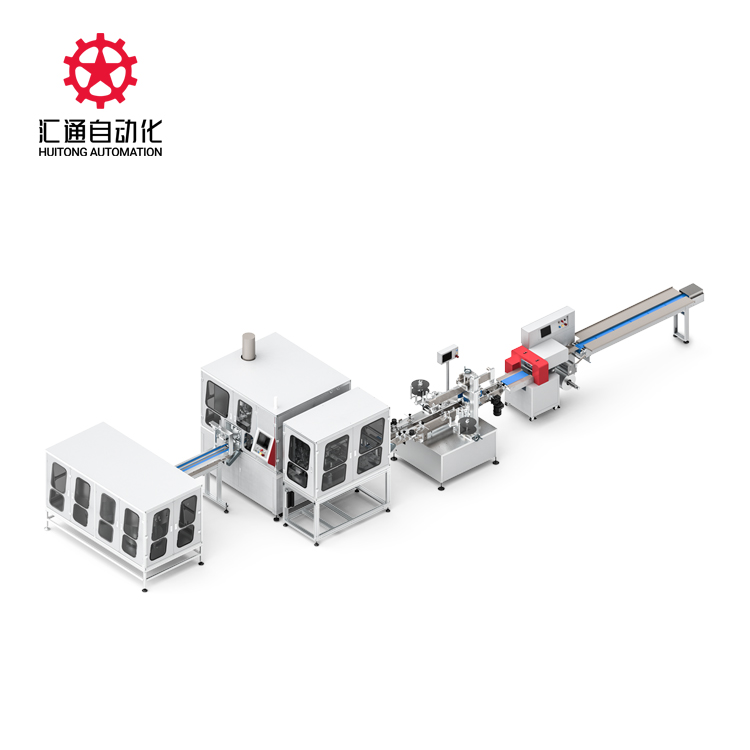

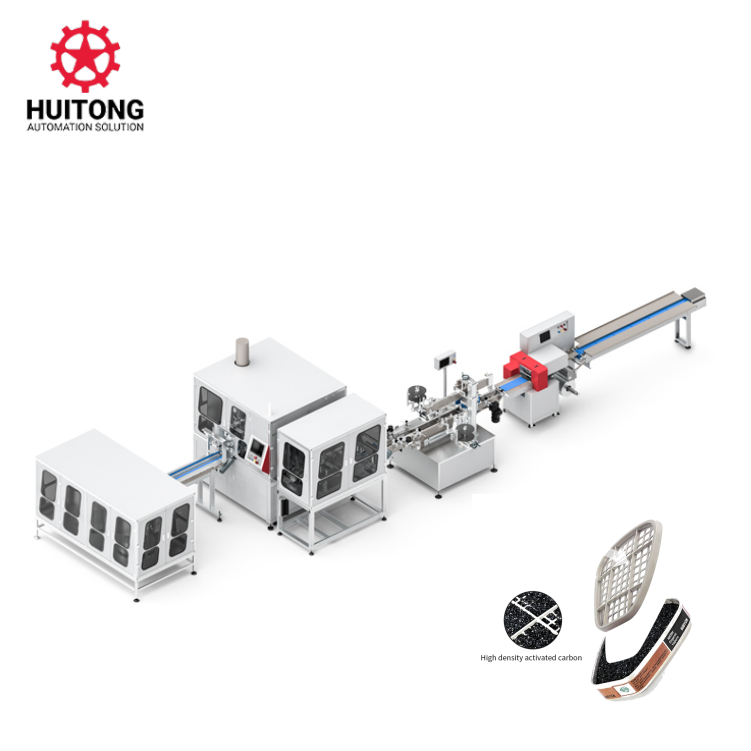

Activated carbon filling production line HT-KM01

This equipment uses a vibrating disc for feeding, and a conveyor belt to transport to a positioning point (this equipment has the function of automatically identifying whether the bottom shell is filled with filter plates and removing missing filter plates from the bottom shell). The mechanical arm positions, installs carbon, welds filter plates, flattens, closes, welds, tests, labels, sprays codes, and packages the entire process with automation. Automatic adjustment of carbon content and servo control for carbon loading structure; Each function adopts modular design, which can quickly add or···

TEL MSG

Product Introduction

This equipment uses a vibrating disc for feeding, and a conveyor belt to transport to a positioning point (this equipment has the function of automatically identifying whether the bottom shell is filled with filter plates and removing missing filter plates from the bottom shell). The mechanical arm positions, installs carbon, welds filter plates, flattens, closes, welds, tests, labels, sprays codes, and packages the entire process with automation. Automatic adjustment of carbon content and servo control for carbon loading structure; Each function adopts modular design, which can quickly add or remove functions according to customer needs.Scope of application: Filter boxes for filtering various gases and particles, as well as plastic products filled with particles.

Product Parameters

ParameterValue
Speed10-20pcs/min
Output Power20Kw
Power SupplyAC220V 50/60Hz
Air Pressure0.6-0.8MPa
Weight4500Kg
Dimensions11500*3500*2500mm

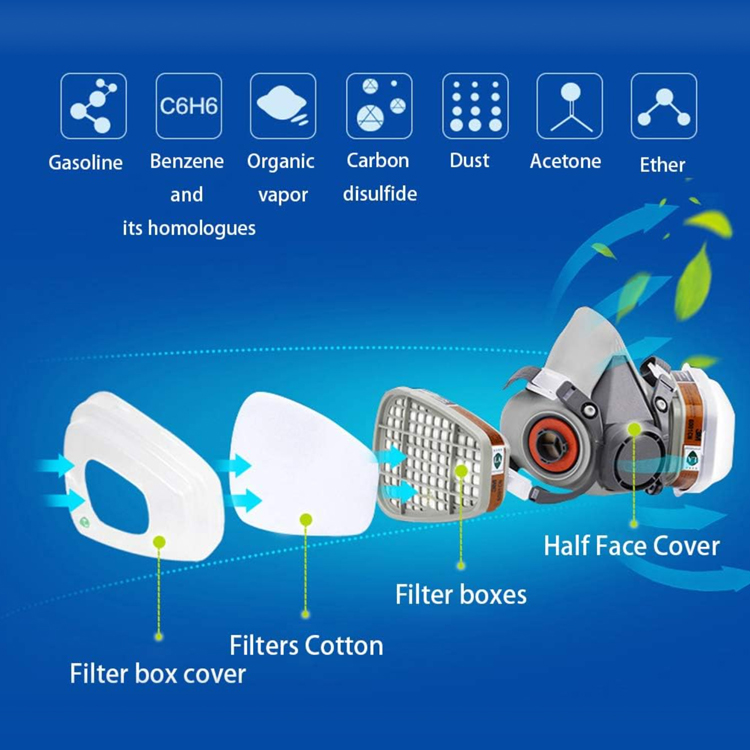

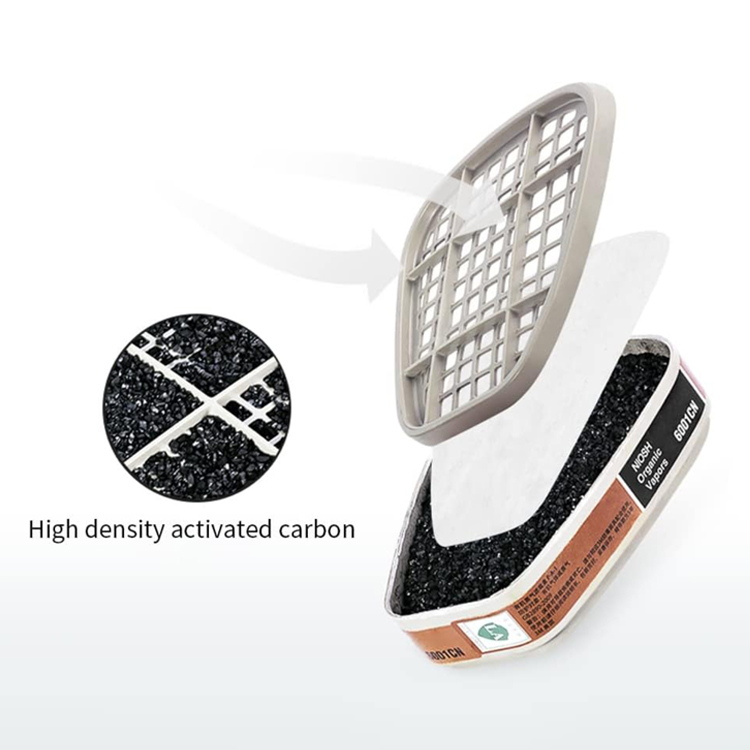

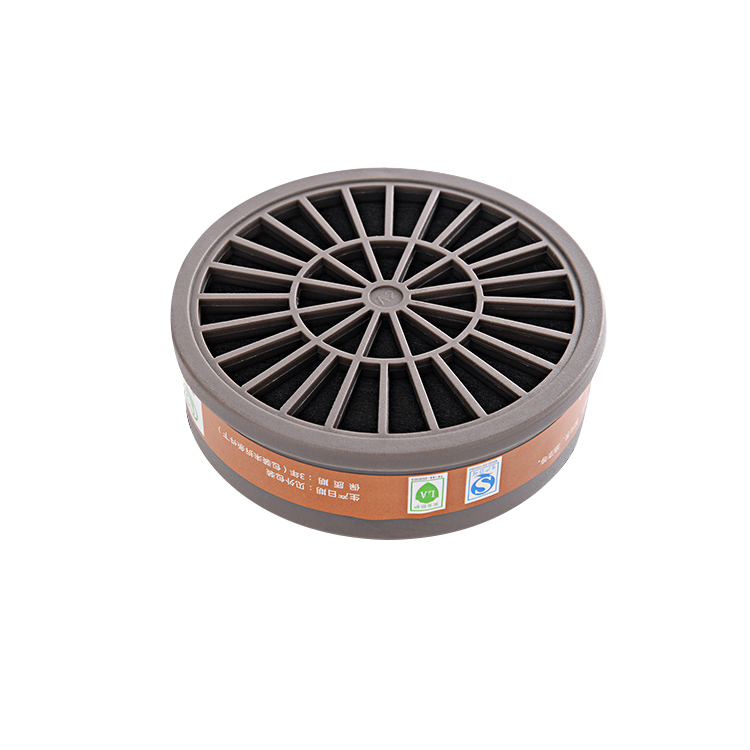

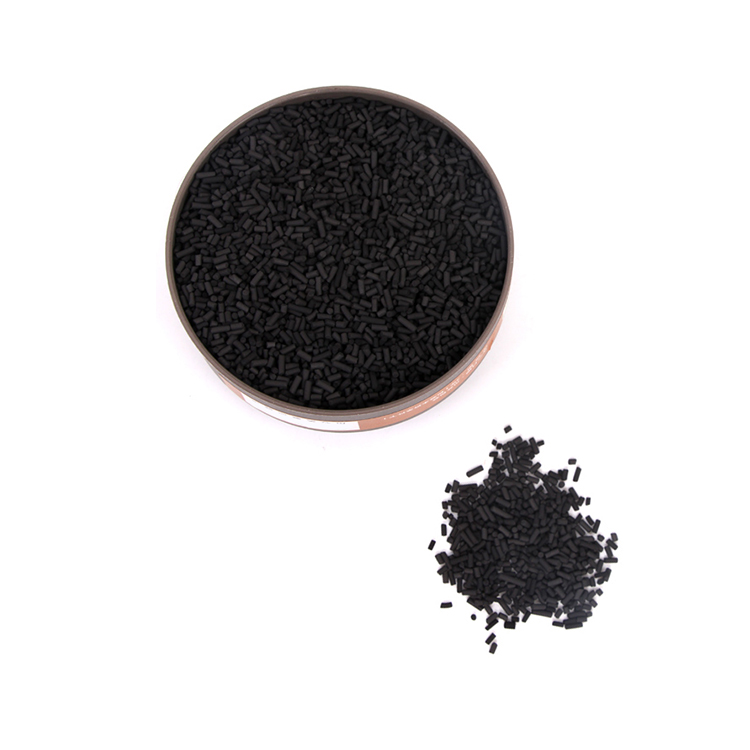

Sample photos

  • Activated carbon filling production line HT-KM01
  • Activated carbon filling production line HT-KM01
  • Activated carbon filling production line HT-KM01
  • Activated carbon filling production line HT-KM01

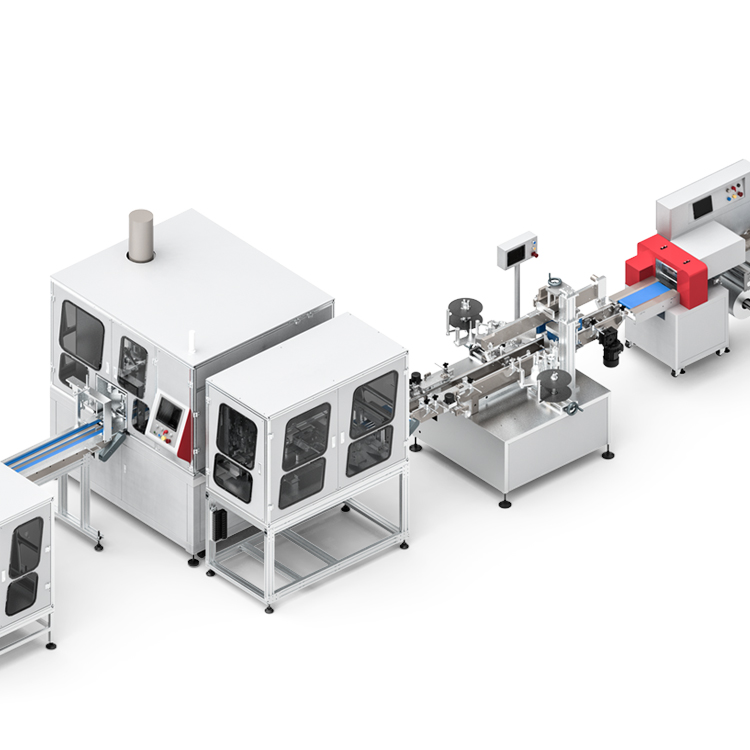

Product Drawings

Activated carbon filling production line HT-KM01
