Product Introduction

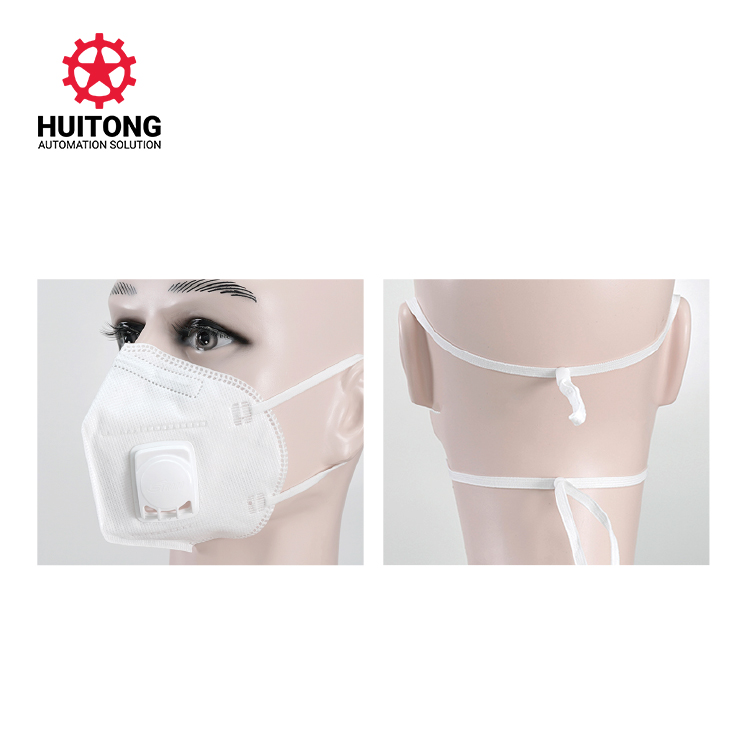

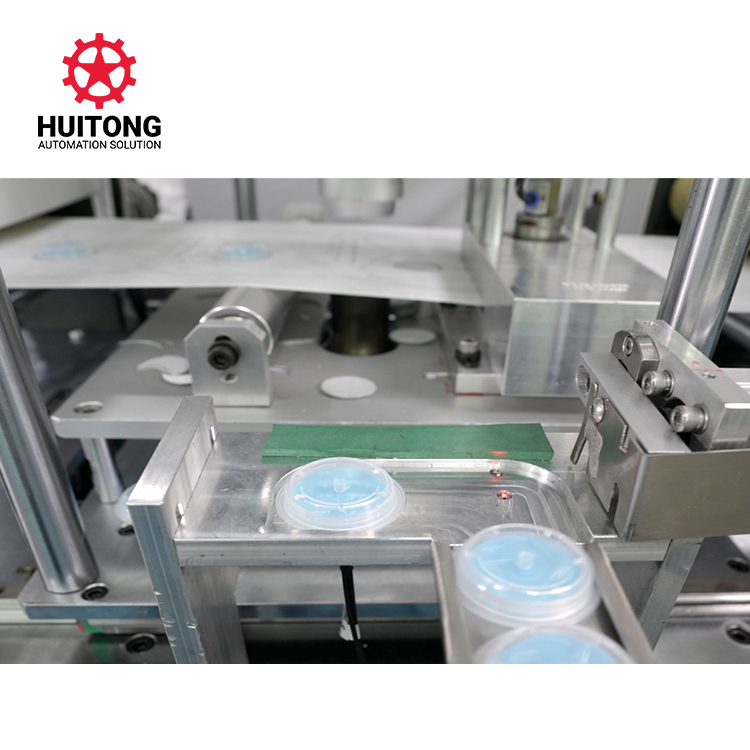

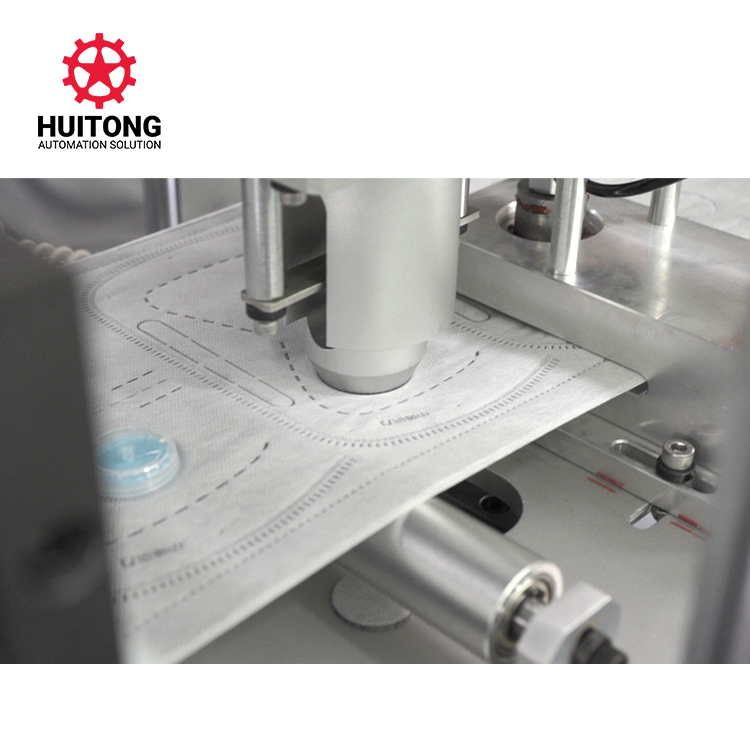

This machine is primarily designed for the production of N95 folding masks with head-loop straps. It automates the entire manufacturing process—including printing, folding, buckle insertion, ear-loop welding, foam strip application, edge sealing, and edge trimming. The ear-loop welding operation is driven by a servo system, ensuring stability and high efficiency, while independent servo drives for each section enhance the machine's overall precision and stability.
Product Parameters
| Parameter | Value |
|---|
| Speed | 40-60 PCS/MIN |
| Output Power | 18KW |
| Power Supply | AC220V 50/60Hz |
| Air Pressure | 0.6-0.8MPa |
| Weight | 3000 KG |
| Dimensions | 9400*1300*2200MM |
Applicable Incoming Material Specifications
Item | Gram Weight | Width (mm) | Outer Diameter of Roll Material (mm) | Inner Diameter of Material Tube (mm) | Weight |
Non-woven Fabric (Laminated Surface Layer) | 50 | 260 | Φ600 | Φ76.2 | Max 15kg |
Non-woven Fabric | 25 | 260 | Φ600 | Φ76.2 | Max 15kg |
Melt-blown Fabric | 30 | 260 | Φ600 | Φ76.2 | Max 15kg |
Hot Air Cotton | 60 | 260 | Φ600 | Φ76.2 | Max 15kg |
Nose Bridge Strip | —— | Approx. 5 | Φ450 | Φ150-Φ330 | Max 15kg |
Ear Loop | —— | 5-7mm Flat Ear Loop | Coiled/Packaged Material |
