Air purification and filtration equipment

Sweeping robot dust bag machine HT-QD02

The robot vacuum cleaner dust bag machine is a fully automated dust bag manufacturing device. From raw materials to finished product, it operates in a single, automated production line, significantly improving production efficiency, reducing labor costs, and minimizing product contamination during the production process. This machine produces dust and filter bags using non-woven fabrics, integrating feeding, slitting, ultrasonic fusion, and slicing processes.

TEL MSG

Product Introduction

The robot vacuum cleaner dust bag machine is a fully automated dust bag manufacturing device. From raw materials to finished product, it operates in a single, automated production line, significantly improving production efficiency, reducing labor costs, and minimizing product contamination during the production process. This machine produces dust and filter bags using non-woven fabrics, integrating feeding, slitting, ultrasonic fusion, and slicing processes.

Product Parameters

 ParameterValue
ModelHT-QD02
 Speed20-30PCS/MIN
Output Power65KW
Power SupplyAC220V 50/60Hz
Air Pressure0.6-0.8MPa
Weight5500KG
Dimensions19843*3269*2293mm

Applicable material specifications

ItemWeight (g/m²)Width (mm)Roll Outer Diameter (mm)Core Inner Diameter (mm)Max. Weight
Non-woven fabric (Outer layer)50400Φ800Φ76.225 kg
Non-woven fabric (2nd layer)50400Φ800Φ76.225 kg
Melt-blown fabric30400Φ800Φ76.225 kg
Inner layer50400Φ800Φ76.225 kg
Inner layer 250400Φ800Φ76.225 kg
Melt-blown fabric30400Φ800Φ76.225 kg
2nd layer50400Φ800Φ76.225 kg
Outer layer50400Φ800Φ76.225 kg

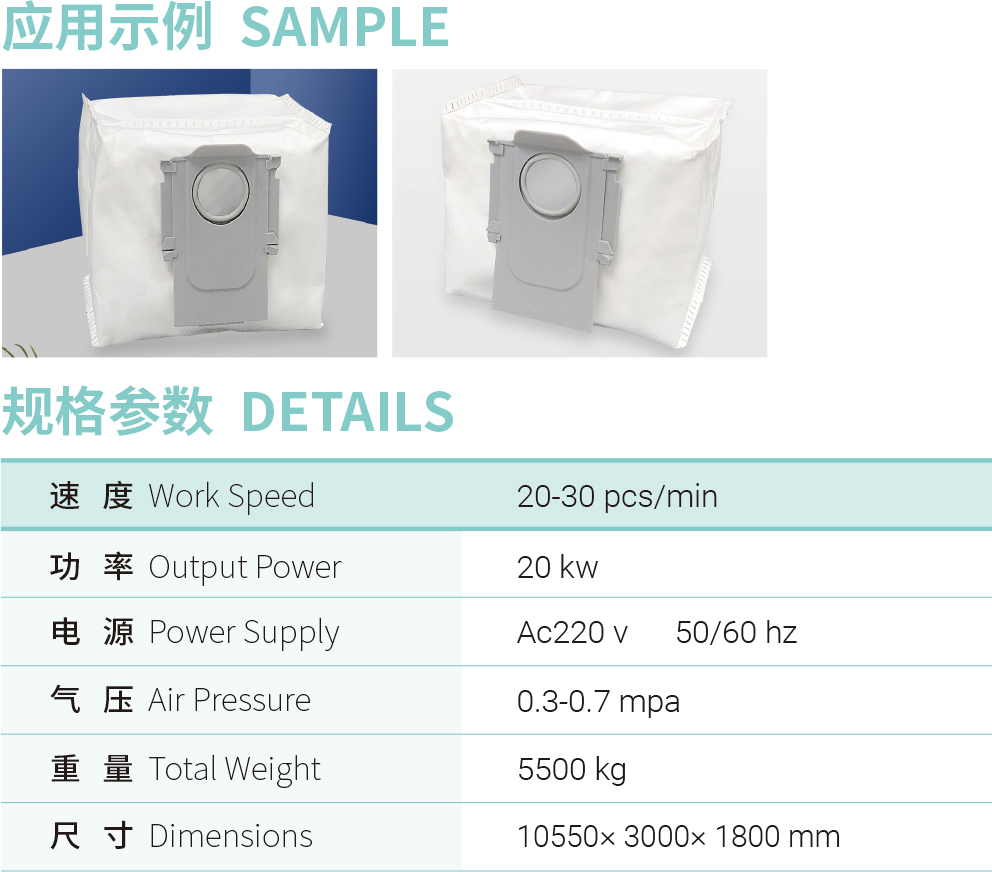

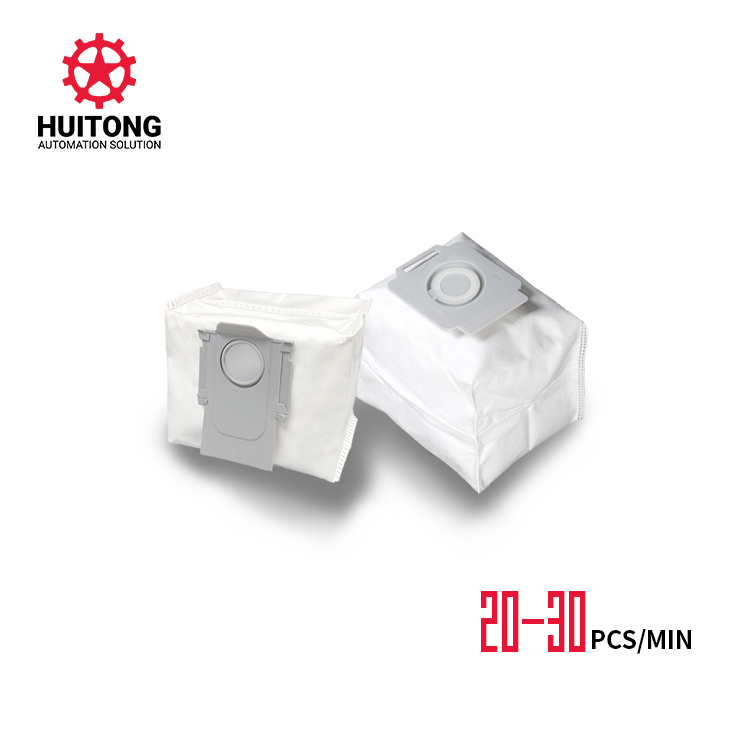

Sample photos

  • Sweeping robot dust bag machine HT-QD02
  • Sweeping robot dust bag machine HT-QD02
  • Sweeping robot dust bag machine HT-QD02

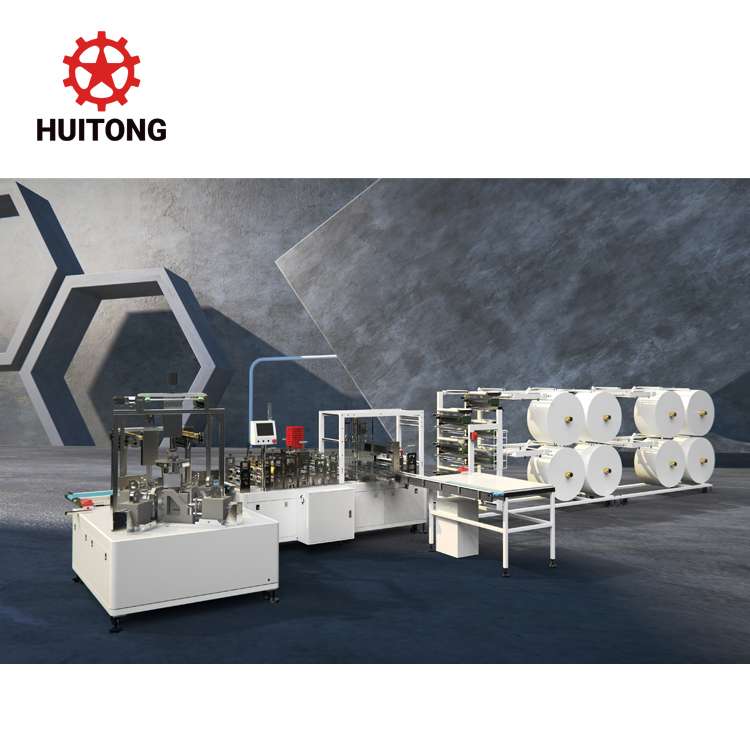

Product Drawings

Sweeping robot dust bag machine HT-QD02
